Find from the packaging materi product type

YL-5KG

Description

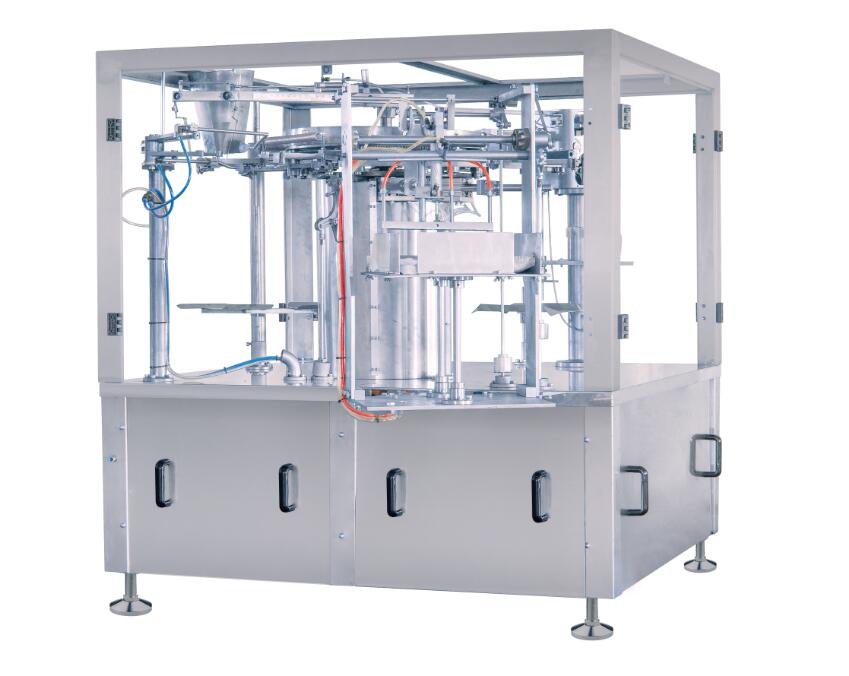

YL-5KG bag-type automatic packing machine is suitable for medium and big bag products, can be packed (bag width) 400 * (bag length) 500mm big bag. A bag of 5KG maximum packaging material. No restrictions on packaging materials, can use softer bags. And ca

Advantage

    ● packaging machine control metering machine release material action, do not waste material. Empty bag seal to prevent the device, control the empty bag is not sealed, do not waste bags.
    ● The world's most stable cam mechanical transmission technology to make equipment running faster and more stable; failure rate, low energy consumption, durability and wear resistance.
    Adopting the advanced technology of stable circuit structure, man-machine interface, PLC, frequency conversion and speed regulation to make users operate and maintain simple, reducing the cost of maintenance.
    ● mechanical maintenance, easy maintenance. The main part of the device using mechanical transmission, the majority of oil-bearing, reducing the oil injection site, easy maintenance.

Technical Parameters

Capacity(pouches/min)
 8-25
Pouch size
 Width:270mm-400mm  Length:300-500mm
Filling weight
 2-5kg
Sealing method
  Heat seal
Electric power
 3.0kw
Use power
 AC380V±10%  3-phase 50Hz
Compressed air
 5-8kgf/cm²  0.5m³/min
Machine weight
 1500kg
Pouch style
 Flat pouch,Stand up pouch,PE pouch
Machine size
 L 2430*W  1500*H 1610mm
Applicable industry
 Food, condiments, beverages, daily chemical supplies, agrochemical seeds, medicine and other industr

Note: This is a custom type of equipment, the text is for reference only, the final interpretation of all the rights of the company, detailed inquiry: 0532-84860100
