Find from the packaging materi product type

YL-6SS

Description

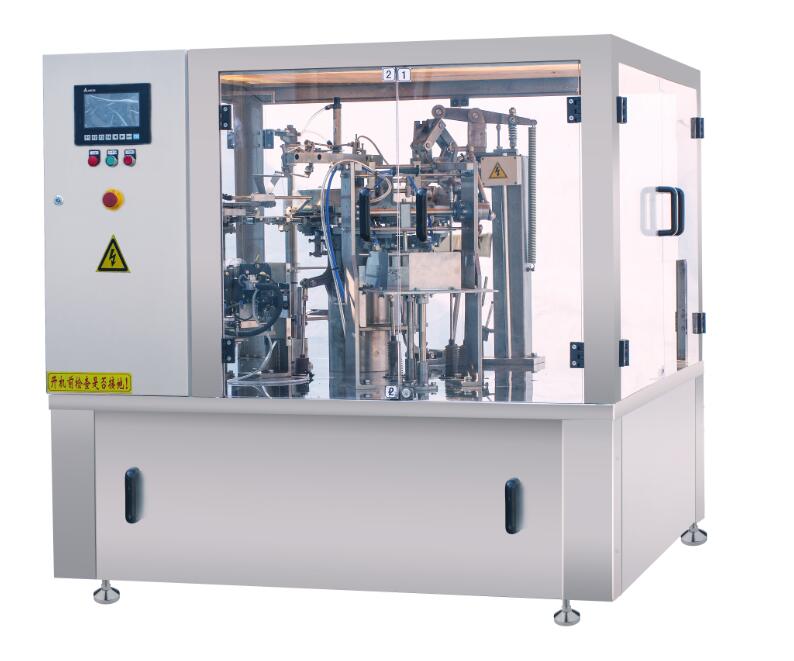

YL-6SS bag automatic packaging machine for a variety of products.

Advantage

    ● The world's most stable cam mechanical transmission technology to make equipment running faster and more stable; failure rate, low energy consumption, durability and wear resistance.
    Adopting the advanced technology of stable circuit structure, man-machine interface, PLC, frequency conversion and speed regulation to make users operate and maintain simple, reducing the cost of maintenance.
    ● mechanical maintenance, easy maintenance. The main part of the device using mechanical transmission, the majority of oil-bearing, reducing the oil injection site, easy maintenance.

Technical Parameters

Capacity(pouches/min)
15-30
Pouch size
Width:140mm-260mm  Length:140-380mm
Filling weight
2-3kg
Sealing method
Heat seal
Electric power
1.5kw
Use power
AC380V±10%  3-phase  50Hz
Compressed air
5-8kgf/cm²  0.2m³/min
Machine weight
1100kg
Pouch style
Flat pouch,Stand up pouch,PE pouch
Machine size
L 1520*W 1831*H 1530
Applicable industry
Food, condiments, beverages, daily chemical supplies, agrochemical seeds, medicine and other industries


Note: This is a custom type of equipment, the text is for reference only, the final interpretation of all the rights of the company, detailed inquiry: 0532-84860100
