Find from the packaging materi product type

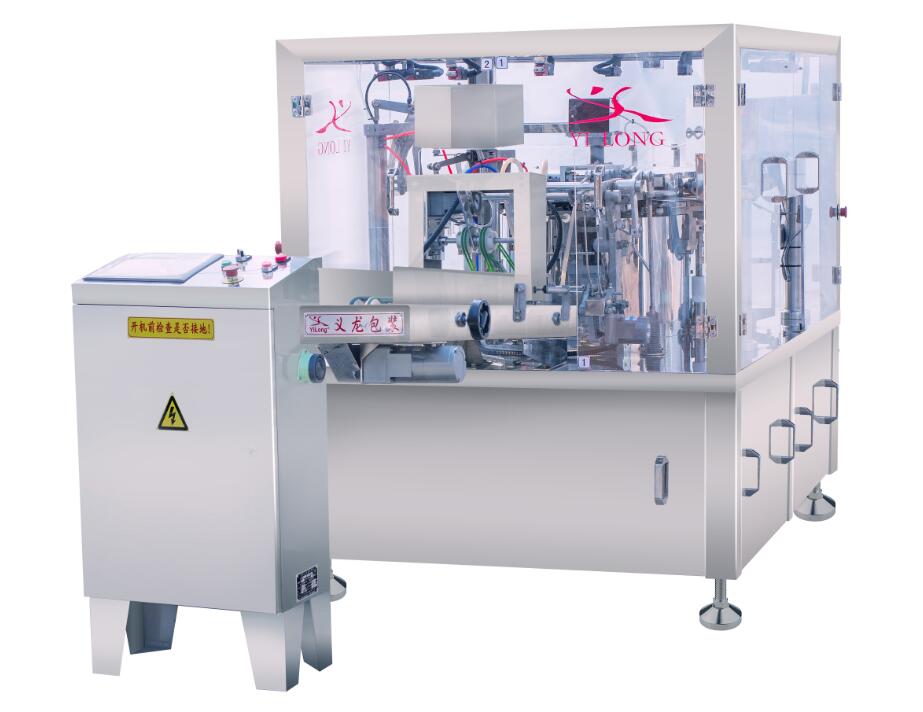

YL-10SZ

Description

YL-10SZ bag automatic packing machine is suitable for zipper bag-shaped packaging machine, with high-speed packaging, and the body adopts advanced spray technology or the use of stainless steel material, contact with the material selection of imported sta

Advantage

    ● The world's most stable cam mechanical transmission technology to make equipment running faster and more stable; failure rate, low energy consumption, durability and wear resistance.
    ● mechanical maintenance, easy maintenance. The main part of the device using mechanical transmission, the majority of oil-bearing, reducing the oil injection site, easy maintenance.
    ● easy to install, easy to operate. Using PLC touch screen user interface, the whole process of automatic control. Host speed control using frequency converter speed.
    ● This machine specially designed plastic work station, so that the seal is flat without wrinkles. Therefore, a complete package pattern, sealing good quality, very low breaking rate, can save a lot of bags.

Technical Parameters

Capacity(pouches/min)
30-45
Pouch size
Width:100mm-200mm  Length:100-300mm
Filling weight
MAX 1kg
Sealing method
Heat seal
Electric power
2.5kw
Use power
AC380V±10%  3-phase  50Hz
Compressed air
5-8kgf/cm²  0.3m³/min
Machine weight
1600kg
Pouch style
Flat zipper pouch,Standing zipper pouch
Machine size
L 2900*W 2100*H 1600 mm
Applicable industry
Food, condiments, beverages, daily chemicals, agrochemical seeds, medicine and other industries

Note: This is a custom type of equipment, the text is for reference only, the final interpretation of all the rights of the company, detailed inquiry: 0532-84860100
